SKU: BA15D-9LSX-WW

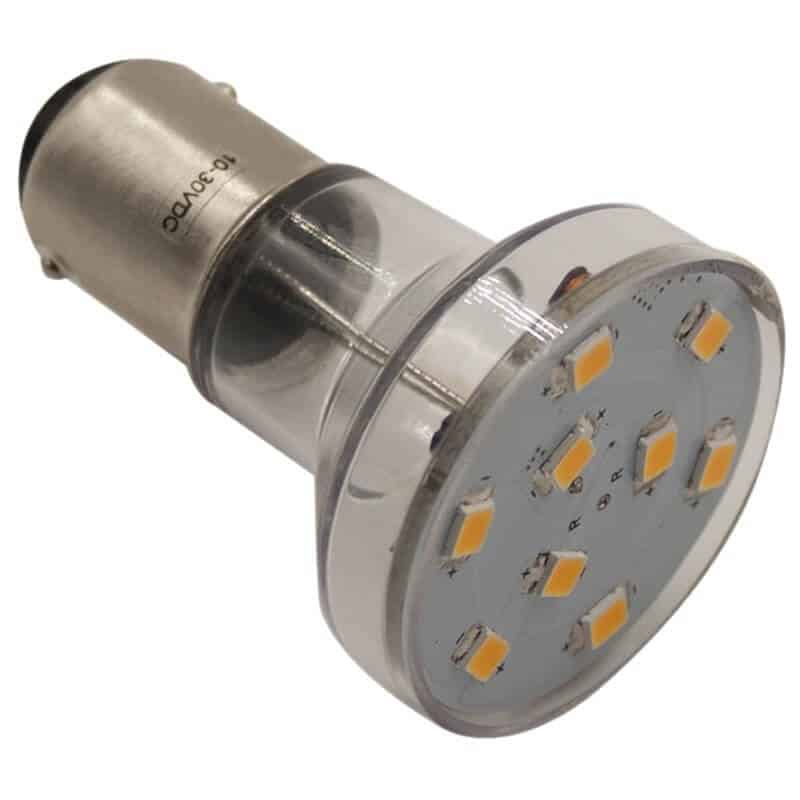

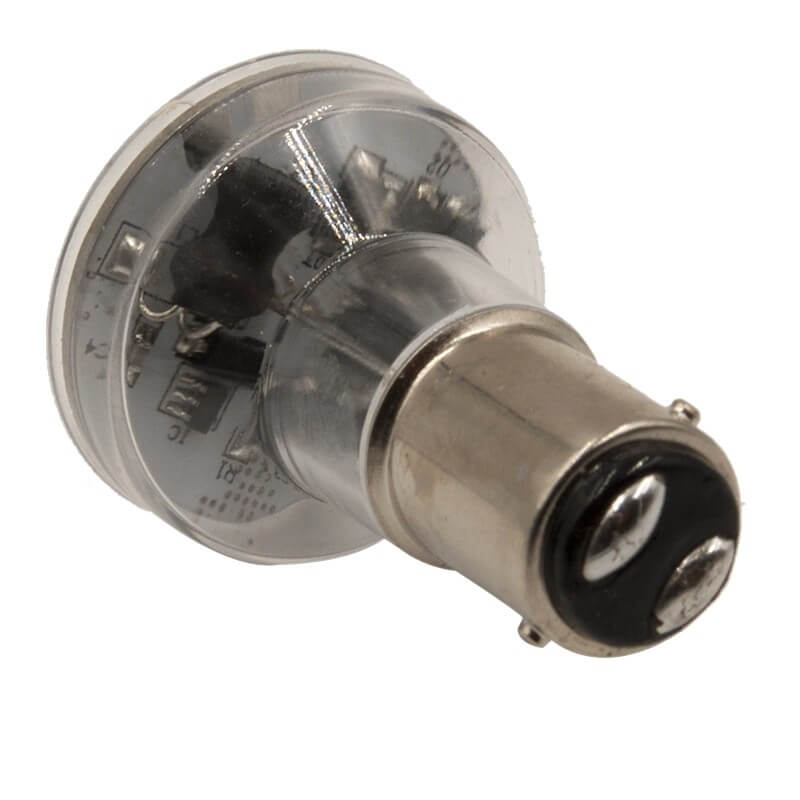

BA15D 9 LED spotlight dimmable

£8.50
Tax included


Delivery and Shipping

If you place your order before 1pm, Monday to Friday, your order should normally be processed and shipped that day. If you place your order at the weekend, a public holiday or outside those hours it will be processed on the next working day.

Most orders are shipped within 24 hours, however, if your order cannot be completed within 2 working days, we will try to notify you by email and given the opportunity to accept part shipment (if applicable) or to wait for completion of order. Some items are manufactured to order and may take up to 14 days, you will be notified of the expected delivery timescale by email within 48 hours.

5-Star Reviews, buy with confidence.

  • NEW ‘3-STEP Dimmable‘ version
  • BA15D 9 LED Dimmable Spotlight style bulb
  • Steps through 9 then 6 then 3 LEDs using your ON/OFF switch
  • BA15D (1142) SBC spotlight style LED bulb
  • Dual contact pins (case not connected)
  • 9 x SMD2835 (new type) LEDs
  • Lumens: 244Lm/161Lm/78Lm (Warm White)
  • Lumens: 253Lm/165Lm/82Lm (Cool White);
  • Full description and dimensions below:

BA15D 9 LED Dimmable Spotlight style Halogen replacement LED bulbs are suitable for both 12v and 24v DC systems whilst maintaining consistent brightness during charging and load fluctuations.

Bedazzled LED Lighting has been designed with the harshest electrical environment in mind and strong attention to safety & reliability.

Specifications for BA15D-9LSX

  • NEW '3-STEP Dimmable' version
  • BA15D 9 LED Dimmable Spotlight style bulb
  • Steps through 9 then 6 then 3 LEDs using your ON/OFF switch
  • BA15D (1142) SBC spotlight style LED bulb
  • Dual contact pins (case not connected)
  • 9 x SMD2835 (new type) LEDs
  • Lumens: 244Lm/161Lm/78Lm (Warm White)
  • Lumens: 253Lm/165Lm/82Lm (Cool White);
  • Voltage: 10v - 30v DC
  • Current draw (at 12v): 165ma/110ma/55ma
  • Approximate Equivalent to 18W or 10W or 5W Halogen bulb
  • 120 degree wide angle beam
  • Dimensions: Bulb head diameter is 32mm, length 46mm (inc base)
  • EMI free (No electrical interference)
  • Features: Internally PROTECTED against Voltage Spikes and FUSED for extra safety

We hold a wide range of BA15D Spotlight Bayonet bulbs

Our LED bulbs are available in Warm White which is intended to mimic the warm slightly yellow colour of a filament bulb and Cool White which is that colder white light you see from LED torches, cool white is always brighter than warm white.

If you need any advice or just want to ensure that you are selecting the correct bulb for your application - simply email or call us for a personal chat with our experienced team.
